Sensor
Geoscope
A multi-channel multi-frequency radar unit for efficient high-density 3D data capturing. Get the unique combination of subsurface penetration and high-resolution data.
Geoscope - empowering our arrays
Full Resolution 3D Imagery
Swipe to see the full table

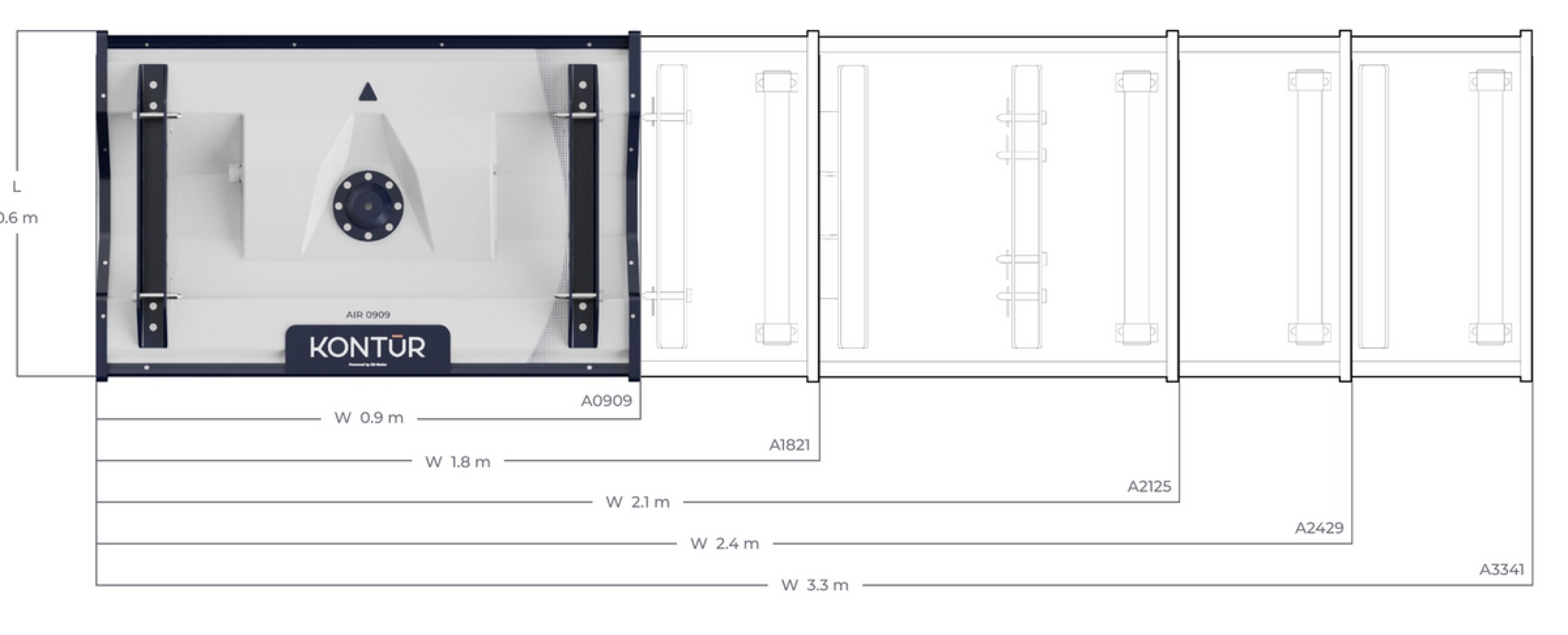

| AO909 | AO909 | AO909 | AO909 | |
|---|---|---|---|---|
| Width | 0.9m | 1.8m | 2.1m | 2.4m |
| No. of channels | 0.9m | 1.8m | 2.1m | 2.4m |
| Scan width | 0.9m | 1.8m | 2.1m | 2.4m |
| Size | 0.9m | 1.8m | 2.1m | 2.4m |
| Weight | 0.9m | 1.8m | 2.1m | 2.4m |
Technical specifications
ANTENNAS
Compatible with all antenna arrays (Air, Ground and Deep).
NUMBER OF CHANNELS
User selectable up to the number of channels in the antenna array (Currently 41)
SCAN PATTERN
User definable. Includes linear scan, multi-offset and common mid-point.
FREQUENCY BANDWIDTH
2.9 GHz (100-3000 MHz)
RESOLUTION (TIME)
0.34 ns.
TIME RANGE
User selectable, up to 250 ns.
SCAN RATE
User selectable, up to 13,000 A-scans per second
OPERATING MODE
Continuous (Time Interval), Survey Wheel (Distance Interval) or External Trigger
High-speed data collection and intuitive analysis options provide an invaluable insight into the quality of pavement networks.
Application Areas
Mounting Options
Front mount
Under mount
